Let's Move/Rapid Transit Expansion Program (1990/1993)
Cancelled in 1995,
partially built
The Let’s Move and Rapid Transit Expansion Program plans were two closely related plans that were natural successors to the TTC’s Network 2011 plan. Both the Let’s Move and Rapid Transit Expansion Program plans put a focus on four major projects: An Eglinton West subway, a Sheppard subway, an extension of the Scarborough rapid transit line, and an extension of the Spadina line to York University. Other projects part of both plans included an expanded Wilson yard, light rail transit on the waterfront, and a proposed extension of the Bloor-Danforth line westwards to Sherway Gardens, possibly to Dixie GO Station.
A natural evolution of the TTC’s Network 2011 plan, the 1990 Let’s Move transit plan by the Liberal provincial government incorporated key elements of Network 2011, including a busway on Eglinton Avenue West between Mississauga and Eglinton West Station and “conditional support” for a Sheppard subway between Yonge Street and Scarborough City Centre – subject to the amount of private investment towards the project.1
Beyond that, the plan introduced an ambitious proposal to connect the two ends of the Yonge-University-Spadina subway by creating a loop that would run along the hydro corridor parallel to Finch Avenue, a move that was predicted to increase capacity on the squeezed Yonge-University-Spadina line by 3,000 riders per hour.2 Meanwhile, extensions to both the Bloor-Danforth subway in the west to Sherway Gardens (and beyond, in the future) and the Scarborough rapid transit line in the east to Sheppard Avenue and Markham Road would extend rapid transit to areas currently poorly served.3 The combined plan along with GO Transit and TTC streetcar projects was to cost over $5 billion dollars and support plans for Toronto’s bid for the 1996 Olympics.4 And like the Network 2011 plan that preceded it, the construction of subways connecting nodes such as North York Centre and Scarborough Centre would support long-standing Metropolitan Toronto plans for decentralisation.5

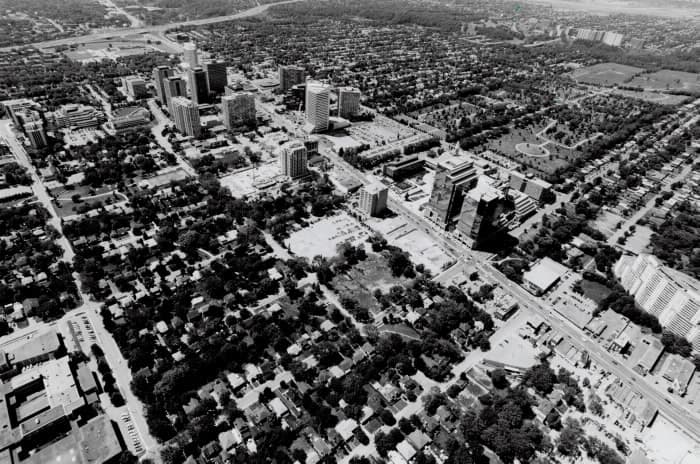

North York Centre
The Sheppard subway was crucial to the then-city of North York and Metropolitan Toronto’s plan to build a downtown centered along Yonge Street. Road capacity in the area was already strained, and a subway was necessary to ensure development could continue without straining the transportation infrastructure in the area.6
(Alan Dunlop / Toronto Star) © Toronto Star, 1990. Reproduced under license.
The plan was well-received by municipal officials within Metro Toronto and seen as a breakthrough in their fight for transit funding for projects. However, the plan, announced in April 1990, was temporarily paused following the Liberal provincial government’s defeat in the September 1990 Ontario general election and the election of an NDP provincial government which quickly paused the previous administration’s plans under the reasoning of conducting “value for money” studies of the projects.7 Ultimately, the Let’s Move plan emerged unscathed from the NDP provincial government’s review of government spending, however was left unfunded as study continued.8
The Let’s Move plan remained unfunded until 1993, when the NDP provincial government announced refined Let’s Move plans under the new name Rapid Transit Expansion Program. The plan, released at the end of the early 1990s recession, was meant to act as both a jobs creator and a way to rebuild ridership on the TTC subway system, which had fallen over 15 per cent between 1988 to 1993.9 Phase one of the plan would include a Sheppard subway between Yonge Street and Don Mills Road, a subway on Eglinton Avenue West from Eglinton West Station in the east to a new “York City Centre” located at Black Creek Drive in the west, an extended Spadina subway reaching York University, and an extension to the Scarborough rapid transit line.10 It would cost $2.5 billion and create 50,000 jobs, with $1.5 billion from the province, $500 million from Metro Toronto, and $500 million from the private sector.11
Rapid Transit on Eglinton Avenue West
Phase one of the Eglinton West subway was planned to terminate at York City Centre, a large office development planned alongside the subway. Pictured is a 1993 render produced for the environmental assessment of the project, showing a train pulling into York City Centre station with a final terminus of Pearson Airport seen on the subway destination blind.12 Further below is an artists' rendition of the proposed York City Centre office development, which would have anchored the subway extension. 13

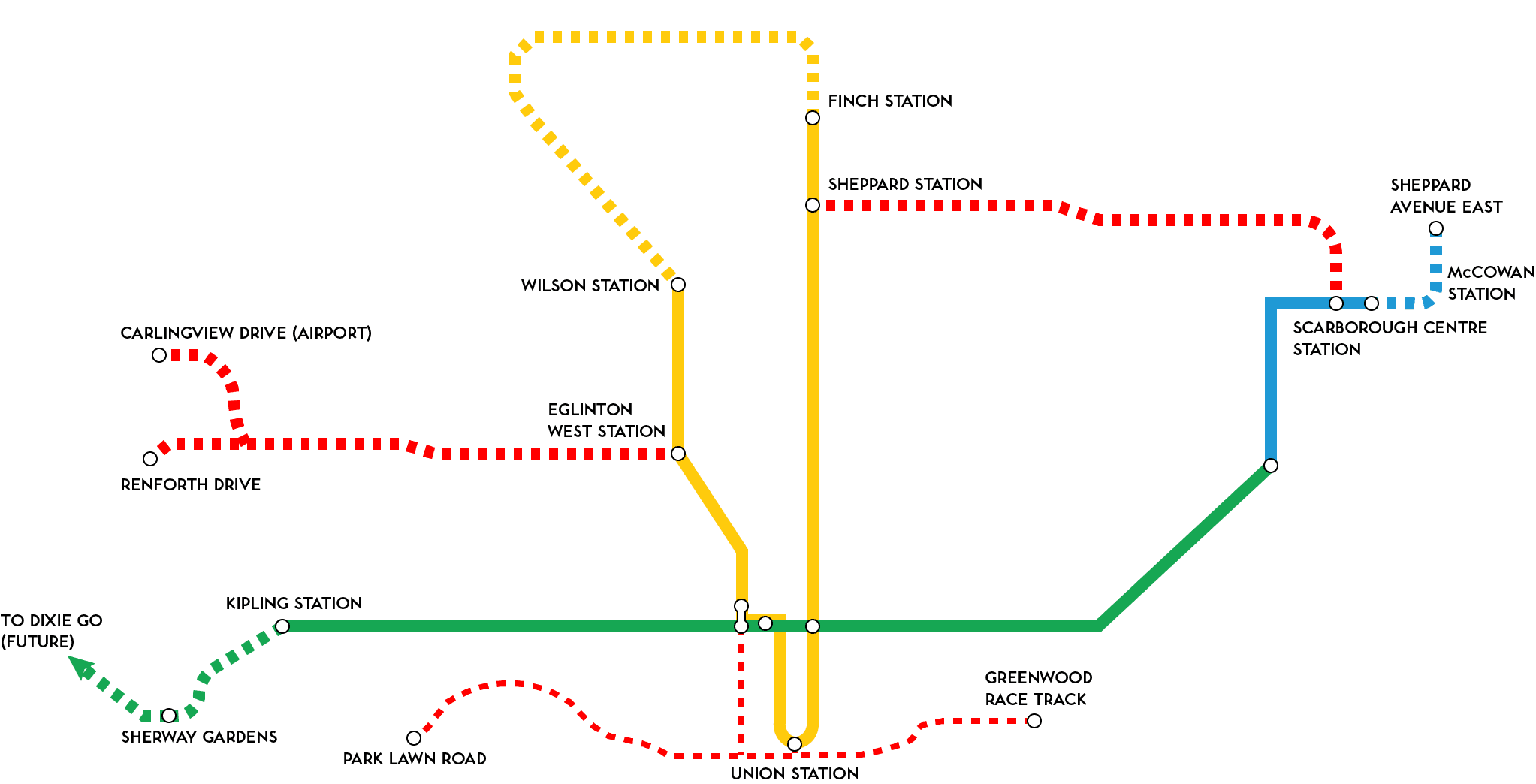

The Rapid Transit Expansion Program plan continued the same projects found in both the Let’s Move and Network 2011 plans while further building on them: A Sheppard subway was made a priority in this plan, with provincial funding to match, unlike the previous conditional support for the line under the previous Liberal provincial government.14 On Eglinton, plans for a busway were upgraded to a subway, pleasing municipal officials in the surrounding area and especially those from the then City of York, where the first phase of the future subway line was to terminate in a new central business district dubbed “York City Centre”.15
Meanwhile, plans for a subway loop connecting the Yonge and Spadina subways were retained but expanded to include proposed stations at York University and with a more northerly alignment on Steeles Avenue rather than through the Finch hydro corridor as originally proposed.16 Similarly, plans for extensions to the Bloor-Danforth subway and Scarborough rapid transit lines were retained, with an extension of the Bloor-Danforth line westwards to Sherway Gardens proposed as phase two of the plan. Further extensions westwards into Missisauga towards Dixie GO Station were conceptually examined as well, pending private-sector contribution.17
Eglinton west

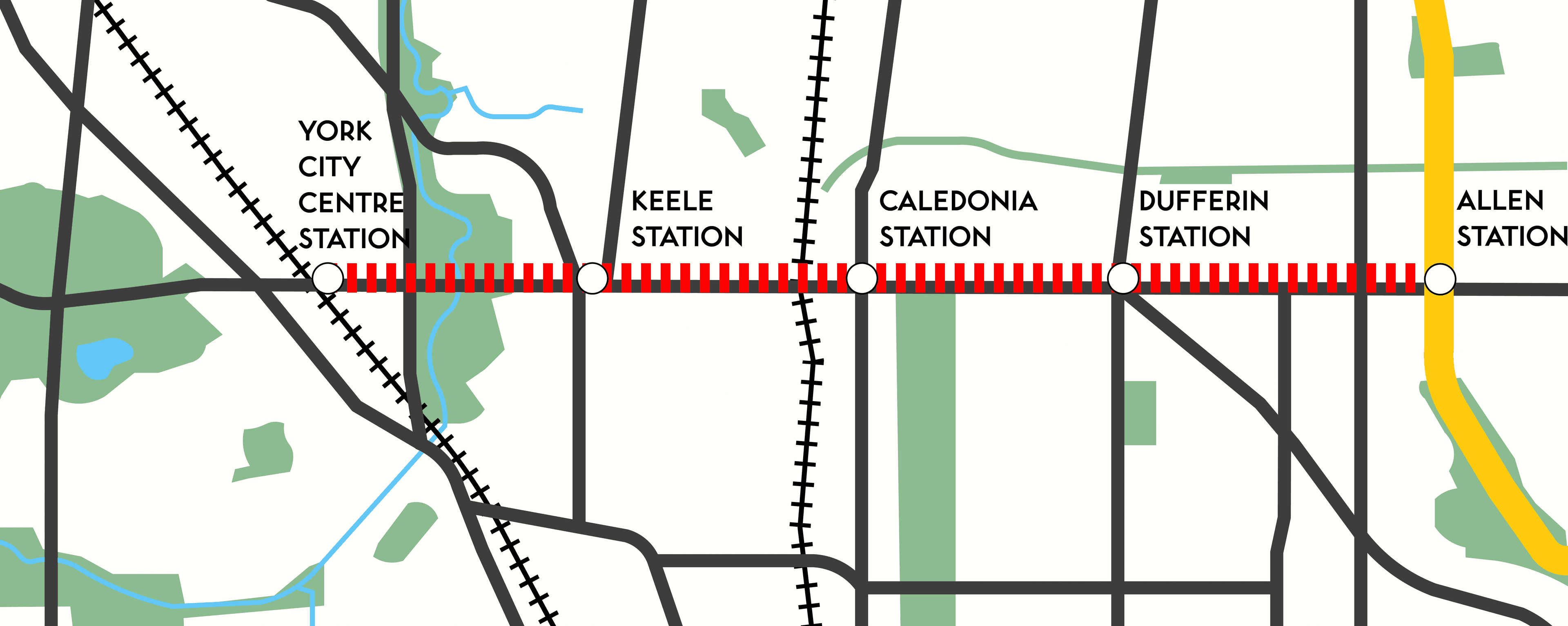

The environmental assessment of the Eglinton West subway identified four new stations and an interchange with the existing Spadina line at Eglinton West station, which was planned to be renamed Allen Station. The Terminus would be located adjacent to a new central business district, dubbed York City Centre. That project died shortly afterwards the Eglinton West subway was cancelled in 1995.18
Sheppard

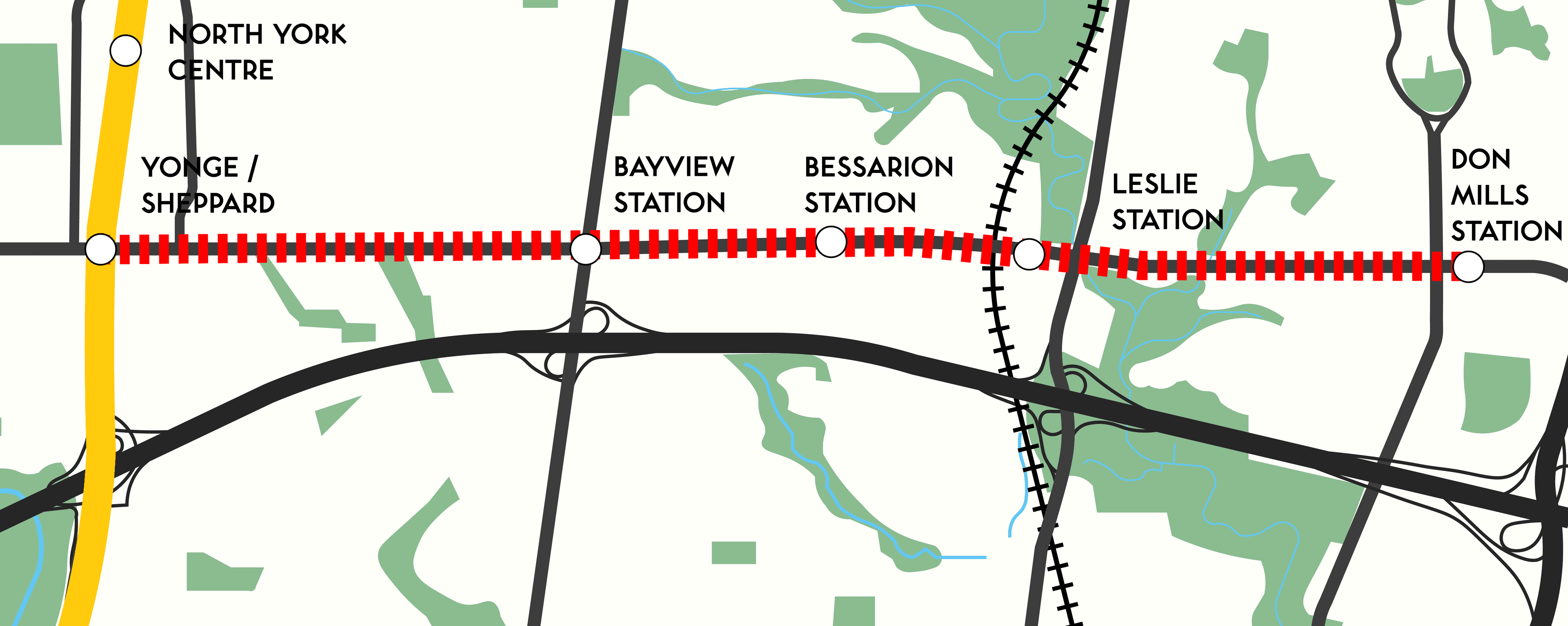

The environmental assessment of the Sheppard subway identified four new stations and an interchange with the existing Yonge lines at Sheppard Station, which was eventually renamed Sheppard-Yonge Station. That project was eventually completed in 2002.19
SCARBOROUGH RAPID TRANSIT EXTENSION

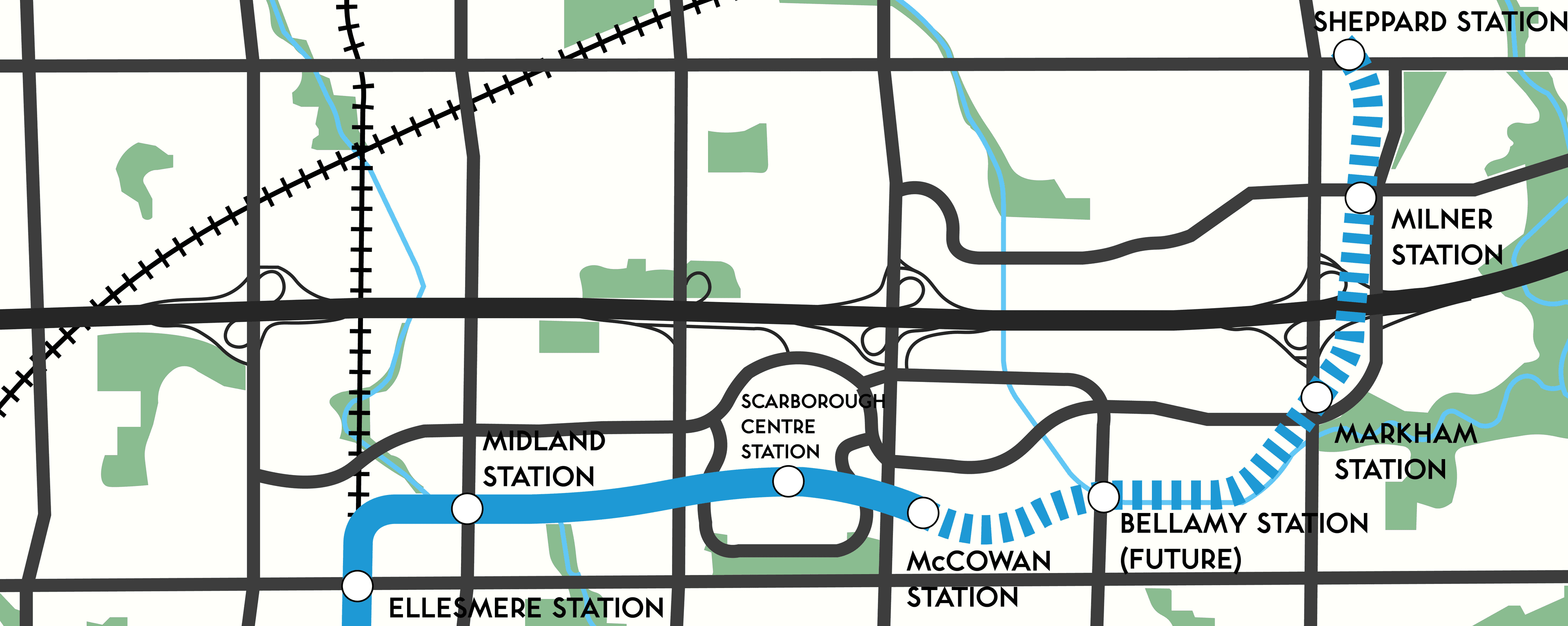

The environmental assessment of the Scarborough rapid transit line extension identified four new station locations approximately following the route of Highland Creek.20 Three stops would be initially built at the intersection of Progress Avenue and Markham Road, the intersection of Milner Avenue and Progress Avenue, and at approximately the intersection of Sheppard Avenue and Markham Road. A station would be built in the future on Bellamy Station adjacent to Highland Creek. Metro Toronto council was unsupportive of the project.
YONGE-SPADINA LOOP

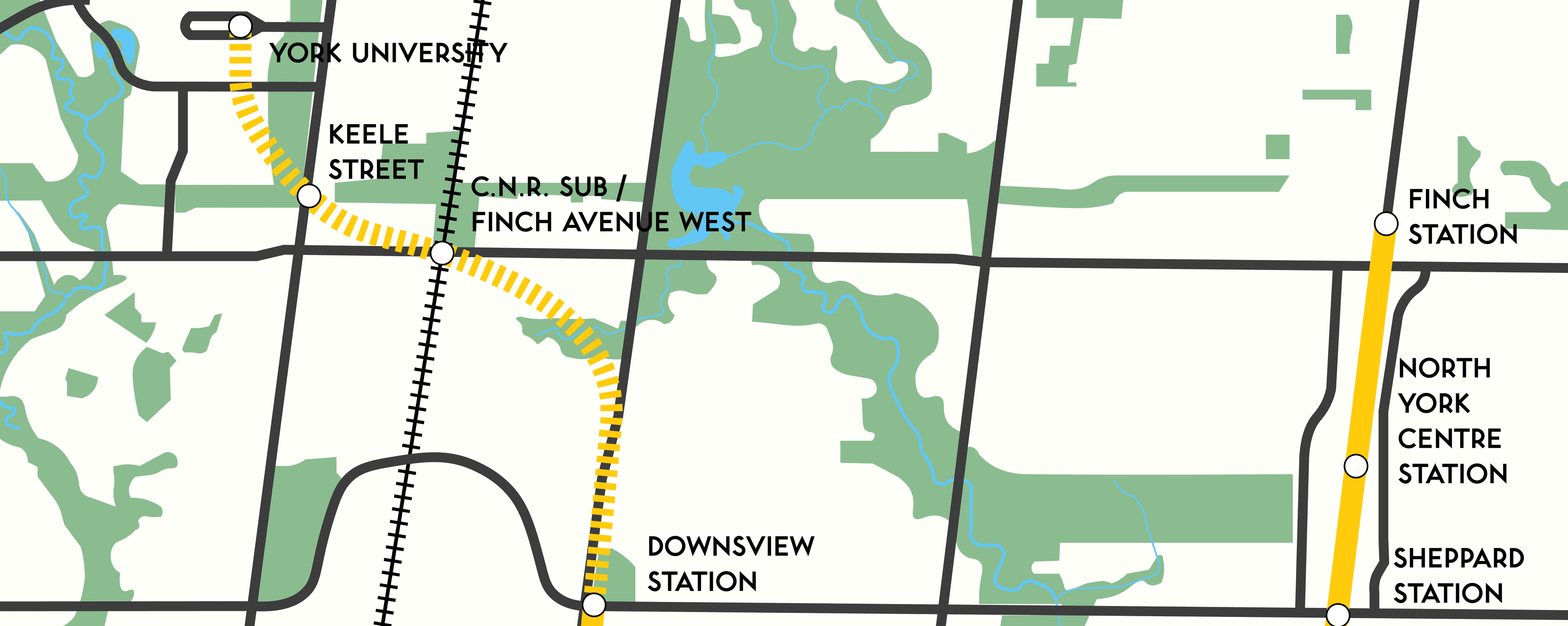

The environmental assessment of the Spadina subway extension to York University proposed three new stations following an entirely new alignment compared to the Let’s Move extension plan.21 Stations were proposed at the C.N.R. subdivision at Finch Avenue West, near the intersection of Finch Avenue West and Kelle Street, and a station terminating at York University. Council was unsupportive of this plan, and it was later cancelled. An extension of the Spadina subway with a slightly different alignment was completed in 2017.
Investment into these projects by the provincial government, Metro Toronto, and the private sector were to be funnelled through a new crown corporation, the Ontario Transportation Corporation, which with a budget separate from the province’s revenues enabled the provincial government to proceed with projects without directly increasing Ontario’s deficit.22
Following the recession, the provincial government’s deficit at the time – a record $10 billion was worrying for many and a key issue in the following 1995 provincial elections.23 Likewise, municipal officials in Metro Toronto were concerned with the cost associated with the four subway projects proposed and their effect on municipal finances, which would see cost-cutting on municipal programs to support the 25 per cent municipal funding necessary for the projects.24Metro Toronto staff had earlier recommended Metro Toronto council to approve only the Eglinton West subway and Spadina extension to York University, leading to clashes between the province and Toronto municipal officials, with the province threatening to cut their share of funding for other municipal projects if only two of the four projects were approved.25
GO Transit Expansion

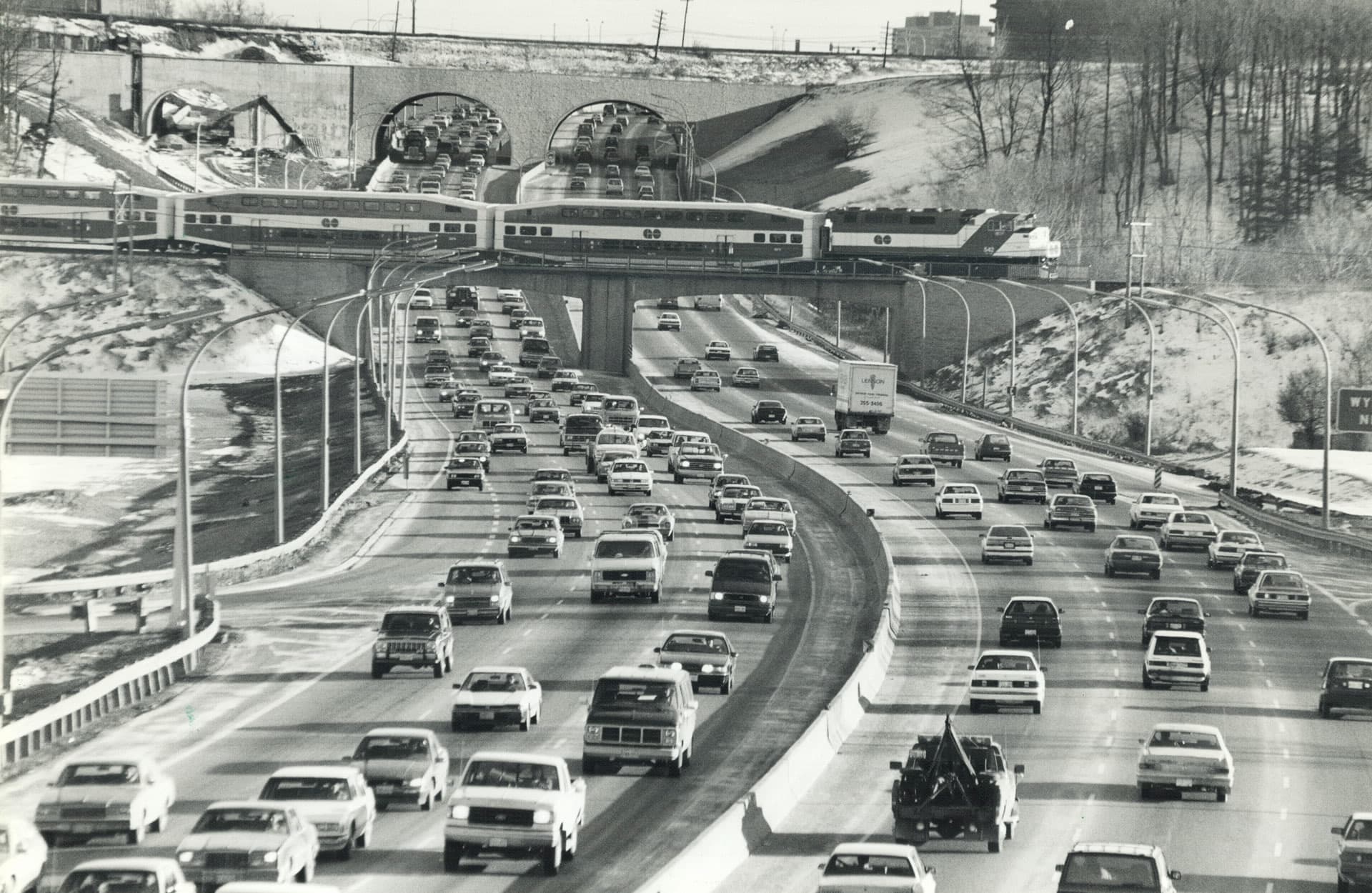

The Let’s Move plan included a number of GO Transit improvements that were later separated from the subway focused Rapid Transit Expansion Program but still continued.26 Projects such as the extension of the Lakeshore West line to downtown Hamilton, a new station in Burlington, and the extension of the Lakeshore East line to Oshawa were all products of the Let’s Move plan and the NDP provincial government’s investment in GO Transit.27 Other Let’s Move plan GO Transit initiatives including the extension of the Richmond Hill line to Bloomington Sideroad in York Region were shelved and ultimately delayed, although such extension was eventually completed in 2022, decades since the idea was first announced.28 Pictured is a Richmond Hill line train over the Don Valley Parkway.29
(Tony Bock / Toronto Star) © Toronto Star, 1990. Reproduced under license.
In the end, both the Sheppard and Eglinton West subways were approved while the Spadina and Scarborough rapid transit extensions, with little political support, were left in limbo.30 A municipal election during the midst of the debate temporarily paused the discussion but both projects were eventually voted against by Metro Toronto council, leading to calls for the province to take control of the TTC.31 Several proposals reportedly investigated by the province included transferring ownership, planning, and day-to-day operation of the subways to GO Transit, leaving the TTC to run only streetcars and buses, taking over just the remaining two projects and funding them through provincial funds only, or taking control of the TTC completely.32
Ultimately, none of the proposals were enacted and by 1994, environmental assessments on the Eglinton West, Sheppard, Scarborough RT extension, and Spadina loop projects had been completed, with construction starting on the former two projects by late summer of 1994, with the other projects expected to start later on.33 By early 1995, excavation had already progressed for tail tracks on the Eglinton West subway and procurement of tunnel boring machines had been underway for the Sheppard subway, then projected to begin tunnelling in mid-1996.34

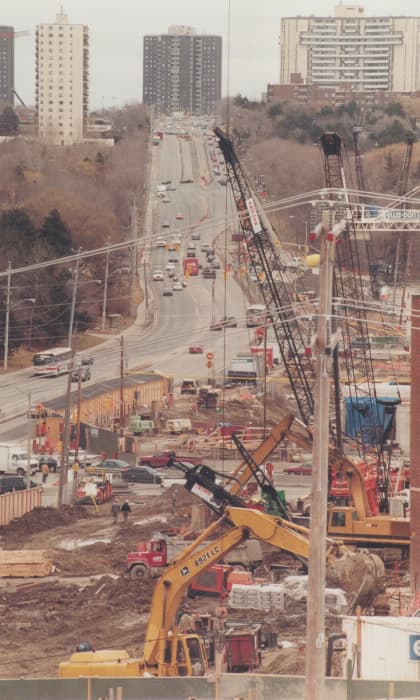

Sheppard subway under construction
The Sheppard subway was the only project spared cancellation by the Progressive Conservative provincial government, which deferred the other projects. Here, construction on the Sheppard subway progresses at the intersection of Sheppard Avenue and Leslie Street in 1998.35
(Boris Spremo / Toronto Star) © Toronto Star, 1998. Reproduced under license.
However, the election of a new Progressive Conservative provincial government running under an austerity platform quickly put an end to three of the four projects, with the Eglinton West subway deferred after their election in June of 1995, funding cut for the Scarborough RT and Spadina extensions, leaving only the Sheppard subway left untouched.36 Construction was halted on the Eglinton West subway and work to revert the street was quickly undertaken.37 The poor financial status of both the province and Metro Toronto (later reorganized as the City of Toronto by the provincial government) kept the three unbuilt projects deferred for more than a decade before similar plans were explored by later provincial and municipal governments.
The Rapid Transit Expansion Program was a crucial point in transit planning for Toronto. Not only did the plan refine and build upon subway projects studied for almost a decade, it also provided the necessary funding for construction. Although never fully realized, the basis of the planning undertaken through this plan formed the first major extension to the TTC subway system for over two decades, with the Sheppard subway between Yonge Street and Don Mills Road opening in 2003. Meanwhile, key elements of the plan including a subway on Eglinton Avenue West and extensions to the Spadina line to York University have been revisited by later governments, with the Eglinton Crosstown LRT opening in 2021 to have a similar routing and station placement as the planned Eglinton West subway, while an extension of the Spadina line with stops at York University opening in 2017.
